April 29, 20242 yr Moderator Recording/Streaming Rocksmith 2014 with OBS=================================================================================================Download LinksFirst method (VoiceMeeter)VoiceMeeter => https://vb-audio.com/Voicemeeter/banana.htmOBS Studio => https://obsproject.com/download Second method (REAPER)REAPER (32bit version installed first) => https://www.reaper.fm/download.phpRS_ASIO => https://github.com/mdias/rs_asioRSMods => https://github.com/Lovrom8/RSModsOBS ASIO => https://github.com/Andersama/obs-asioVB-Audio Hi-Fi Cable => https://vb-audio.com/Cable/index.htm#DownloadASIOBridgeOutdated, but may be necessaryOBS Studio 28.0 => https://github.com/obsproject/obs-studio/releases/tag/28.0.0(You may be able to use a newer 28.x version, but 28 is the latest one I know of that works with the BassASIO plugin.)BassASIO Plugin => https://github.com/foxx1337/obs-asio/releases/ (Optional VSTs to improve your playing experience, for use with REAPER)Kilohearts Pitch Shifter => https://kilohearts.com/products/pitch_shifterSubmission Audio LockOn Tuner => https://www.submissionaudio.com/products/lockonThere are two methods for getting Rocksmith audio to Discord. VoiceMeeter and REAPER. The first method, VoiceMeeter is a lot simpler, has less set up, and should have less issues with audio distortion. ========================================================================================================First Method: VoiceMeeterThe first method uses VoiceMeeter. This method is easier and less complicated than the second method. It uses less software and therefore has less things that can go wrong.If you want to use a combination of the two, that is also possible. You can use REAPER for your instrument input into Rocksmith and VoiceMeeter for the output. I will cover both for the second method.========================================================================================================VoiceMeeter Setup Start with opening VoiceMeeter Banana.The first thing you need to do is set your HARDWARE OUT. This will be your headphones or speakers. Select them by clicking the A1 button in the top right.Pick whichever device you are using, for me this will be my Focusrite. If you are using an audio interface, you should use the ASIO option if available. The next thing to do is set up Rocksmith to output to VoiceMeeter. You can do this one of two ways.By setting VoiceMeeter as Windows default audio output device (by selecting Voicemeeter In 1 in Windows Sound Settings)Or by setting VoiceMeeter as output in RS_ASIO. If you're using an audio interface, I would recommend this option as it'll be easier. The next thing to set up in VoiceMeeter is making sure your Rocksmith audio is being routed to both its own virtual output and to your headphones.The A1 and B1 should be selected under the "virtual inputs". That will be this section: The left is the one you chose when setting up the output. There is also the AUX option if you wanted to route something like Discord voice so that people don't hear themselves. (You would just set Discord audio to output to AUX and send it to A1, no need to set it to B1/B2 unless you want the stream to hear Discord chat. A1 sends the audio to your HARDWARE OUT device you selected earlier (your headphones).B1 sends the audio to a virtual output device. This is what you will use to send audio to Discord. (And OBS if you want)You should also save your settings, load settings on startup, and have VoiceMeeter start when you start your PC. These options are found in the Menu.If you are using an audio interface that can't split it's inputs (Focusrites come to mind) for use with Discord. You can use VoiceMeeter to split the inputs.To do this, click Menu and select System settings / Options.Look for where it says OUT A1 Main Device. Under that it will have PATCH ASIO Inputs to Strips.To split the inputs, simply set IN 1 to 1/1 and In 2 to 2/2. (You only really need to do this for whichever input is your Mic, whether that being 1 or 2)While you're in the settings, also make sure that the sample rate is set to 48000 Hz (Everything should be set to 48000 Hz for that matter). A mismatch of sample rates will cause audio issues that will be very apparent. The option will be located at the bottom. Then, back in the main VoiceMeeter window you will have the inputs set to HARDWARE INPUT 1 and HARDWARE INPUT 2.You can mute the instrument input with the "Mute" button at the bottom of the input.To route the Mic input from VoiceMeeter into Discord (and OBS if you'd like), deselect B1 and select B2.If you would like to monitor the Mic in your ears as well, keep A1 selected. Otherwise deselect A1 as well. ========================================================================================================OBS SetupThe setup for OBS with VoiceMeeter is only if you want to record or stream to another service that isn't Discord.Add an audio input source and select VoiceMeeter Out B1 (VB-Audio VoiceMeeter VAIO).To capture Rocksmith video, add a Window Capture source and select Rocksmith. (You will need the game open for it to show up when adding it) ========================================================================================================Discord When streaming to Discord, use OBS Virtual Camera under Capture Devices. (You will have to turn it on in OBS) Use VoiceMeeeter Out B1 (VB-Audio VoiceMeeter VAIO) as the audio device. If you also used VoiceMeeter to split your mic and instrument, go to Discord Settings > Voice & Video and then under Input Device, select VoiceMeeter Aux Out B2 (VB-Audio VoiceMeeter AUX VAIO). =================================================================================================Second Method: REAPER The second method uses REAPER. This method is more complicated than the first method. It uses more software and therefore has more things that can go wrong. Using REAPER will let you use pitch shift VSTs, record audio inside REAPER, and use audio interfaces that do not have 32bit drivers that RS_ASIO requires to work properly.If you want to use a combination of the two methods, that is also possible. You can use REAPER for your instrument input into Rocksmith and VoiceMeeter for the output. I will cover both for this second method.======================================================================================================== InstallationMake sure to grab the 32bit version of REAPER (and x64 if you want that). When installing REAPER, you will need to also install the ReaRoute ASIO driver. You can find this under optional functionality when choosing components.`To install RS_ASIO, drag the 3 files from the zip archive into the base Rocksmith folder. ========================================================================================================REAPER Setup Open REAPER and select your audio device by clicking the text in the top-right corner.Use ASIO for an audio interface and Wasapi for the Real Tone Cable.The next thing to do is setup the input and track(s) for you instrument.This will be for using REAPER as both input and output, and also for using REAPER as input and VoiceMeeter as output. Add a new track by right clicking, or by pressing Ctrl + T.Click the red record arm button on the left of the track.Set the input to your guitar. Real Tone cable users can skip this as you’ll only have Input 1. Click the ROUTE button for the master track.Mute Output 1 / Output 2.Add a new hardware out and select ReaRoute 3 / ReaRoute 4. The next part is only if you want to use REAPER as the output from Rocksmith (and routing that to OBS) Add a second track and click the ROUTE button for the second track.You will find it at the bottom of the REAPER window, on the right side of the fader for that track.Uncheck master send channels.Add a new hardware output and select Output 1 / Output 2. (This lets YOU hear Rocksmith audio)Add a new hardware out and select ReaRoute 5 / ReaRoute 6. (This is where the audio gets routed for OBS to hear it)You can add a tuner VST to your master track by clicking the FX button, located under the ROUTE button. You can add a tuner VST to your master track by clicking the FX button, located under the ROUTE button. (It is the green one in my image, it won't be green unless it has an FX added to it)If you want to use REAPER as a pitch shifter, you can also add a pitch shift VST to your instrument track(s) by clicking the same FX button, but on the input track(s) you make for you instrument. They will be under the "pitch shift" category when you click add.For easy tuning switches using the pitch shifter, I recommend creating multiple tracks with different values of pitch shifts.Example: When switching, Rocksmith will use the track that is armed.When using REAPER for Rocksmith; REAPER must be open before opening Rocksmith.You also need to have tracks armed before opening Rocksmith. If you are using REAPER for both input and output; that means you need both an input and output track armed.========================================================================================================RSMods (RS_ASIO)Start Rocksmith after installing RS_ASIO to initialize ASIO devices. Once the game is open and you get the error box, you can close the game.Open RSMods and navigate to the RS_ASIO Settings tab.Select ReaRoute ASIO for Input 1.Set the Channel to 3.Select ReaRoute ASIO as the Output. (You can also select VoiceMeeter Virtual ASIO as the output to use VoiceMeeter instead of REAPER for output, as mentioned previously)Go to the Rocksmith Settings tab.Check Real Tone Cable Only.Uncheck Enable Microphone.Exclusive Mode must be enabled for RS_ASIO. ========================================================================================================OBSOpen OBS.Open Settings, click Audio, and scroll to the Advanced section.Change Monitoring Device to Hi-Fi Cable Input (VB-Audio Hi-Fi Cable)Add a new source to your scene.Select asioInput (may be called something similar).Select ReaRoute ASIO (x64) for the Device and close the box.Configure the source to add the channels.Set Channel 1 to ReaRoute ASIO 4 ReaRoute REAPER=>CLIENT 5.Set Channel 2 to ReaRoute ASIO 5 ReaRoute REAPER=>CLIENT 6.In the Audio Mixer, click the 3 dots under an audio source.Select Advanced Audio Properties.Change the ASIO audio source from ReaRoute to Monitor and Output.========================================================================================================Discord When streaming to Discord; use OBS Virtual Camera under Capture Devices.Use Hi-Fi Cable Output (VB-Audio Hi-Fi Cable) as Audio Device.========================================================================================================Troubleshooting If you get a SOUND INITIALIZATION ERROR, that means your output isn't being recognized.This can happen if:Audio Exclusivity is not enabledSample rate is not set to 48000 HzREAPER is not open with an active output track armed before opening Rocksmith If you can't hear your instrument (but don't get the audio output error), it is most likely caused by:Wrong channel set in the Input section of RS_ASIOREAPER is not open with an active input track armed before opening RocksmithThe track for your instrument isn't going to the master track and/or the master track isn't outputting to ReaRouteThe track for your instrument isn't using the input your using If your audio is slow, distorted, popping, crackling, robotic, or similar; the most likely cause is hardware not being able to keep up.You can most likely fix it by adjusting your buffer size for your interface.There are 3 places where you can adjust this (for interfaces, the Real Tone Cable will only have 2 options). These are:Buffer size set to "Custom" in RS_ASIORequest block size in the REAPER audio settingsIn your interface's driver settings You can also try changing the Win32UltraLowLatency setting. If it's on, try having it off. If it's off, try having it on.If adjusting buffer size or Win32UltraLowLatnecy doesn't fix the problem, or makes it worse; you will have to narrow down what is causing the issue as it's probably your hardware not being able to process the audio cleanly. Most of the time if this is an issue it will only start happening when opening OBS.If you are getting audio in only one ear, that is most likely caused by:Having only one channel set on the output (Rocksmith audio track) instead of two. I.E. ReaRoute 1 (mono) instead of ReaRoute 1 / ReaRoute 2 (stereo).Having only output 1 or output 2 set instead of Output 1 and Output 2Note: If your sound output is working fine, but when opening OBS your sound becomes distorted/crackles; try installing and using the older OBS Studio 28 and BassASIO plugin for it instead of the newer ones. (Links at the top)
July 16, 20242 yr Author Moderator On 7/15/2024 at 3:45 PM, Roc666 said: did all the steps for voivemeeter and now i get crazy robotic cracking sounds on load up any idea ? great tut btw very in depth Load up of the game or something else?
November 22, 20241 yr Hi @ Phantatsy great guide, is it possible to split output using this method, i.e. normally I have headphones connected via jack to my Focusrite Scarlett, but with the virtual output is it possible to also listen via another device like laptop speakers? Or would that just not work?
November 23, 20241 yr Author Moderator On 11/22/2024 at 2:45 PM, zopad said: Hi @ Phantatsy great guide, is it possible to split output using this method, i.e. normally I have headphones connected via jack to my Focusrite Scarlett, but with the virtual output is it possible to also listen via another device like laptop speakers? Or would that just not work? If you're using VoiceMeeter, then yes. You just need to add an additional hardware output (The A1, A2, etc at the top) and route it to the new one as well. For REAPER, if you're using ASIO then you can only use the currently selected hardware for output. However, you may be able to use the WASAPI drivers and do it that way. I haven't tested that way out using an actual interface, but it's how I got the RealTone cable to work with it before.
January 20, 20251 yr I've tried everything and rocksmith just keeps saying it doesnt have an output device.
January 20, 20251 yr Author Moderator 3 hours ago, SnailTrails said: I've tried everything and rocksmith just keeps saying it doesnt have an output device. Is it the ERROR SOUND INITIALIZATION ERROR? That is usually caused by your sample rate not being set to 48000Hz.
January 21, 20251 yr hi, i installed voicemeeter and when i launch the game it loads until theres a pick visible in the bottom right corner and then it closes, the problem is gone if i uninstall voicemeeter, does anyone have a fix?
January 21, 20251 yr Author Moderator 1 hour ago, chavadeus27 said: hi, i installed voicemeeter and when i launch the game it loads until theres a pick visible in the bottom right corner and then it closes, the problem is gone if i uninstall voicemeeter, does anyone have a fix? You may be able to install an older version of VoiceMeeter to solve this issue. I've noticed a few people have had issues when using VoiceMeeter, but as I haven't had this happen to me personally, I can only speculate on the issue.
February 12, 20251 yr Any idea on how to use rearoute as multiplayer? Cannot find anything online. I tried to copy my guitar track and change the output of the new track to input 2 but in the multiplayer setup window, player2 has now the signal of input 1 AND 2. I know it would be by changing the "Sends" in reaper but i dont know where to start. Thx
February 12, 20251 yr Author Moderator 7 minutes ago, Brissybriss said: Any idea on how to use rearoute as multiplayer? Cannot find anything online. I tried to copy my guitar track and change the output of the new track to input 2 but in the multiplayer setup window, player2 has now the signal of input 1 AND 2. I know it would be by changing the "Sends" in reaper but i dont know where to start. Thx Sounds like you have both tracks being sent to the "master track". You'll want to make sure at least the 2nd player's track is set to a different rearoute and is also not sent to master unless you're not routing the master track to RS ASIO. If you need further explanation I can help more.

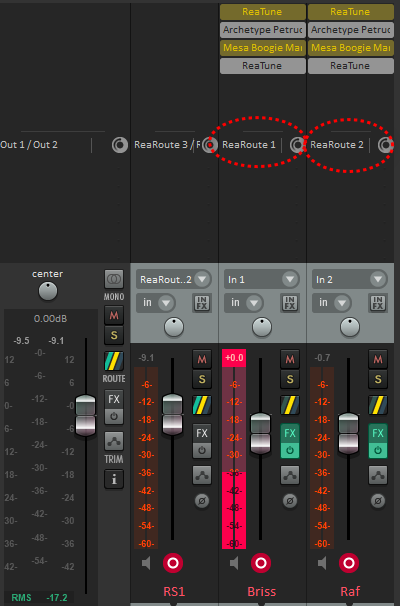

February 13, 20251 yr alright, found it. not exactly setup as your tutorial but should work the same to have it worked in multiplayer simply dupicate your guitar track change input for player 2 (here Raf plays Bass in input 2 of my Motu M4) and instead of sending to Rearoute1\Rearoute2 on both change player1 to rearoute1 and player to rearoute2 this is why Raf was sending her bass signal in my Rocksmith line as well. Now, she only sends in her line. I play mine... Let's rock!

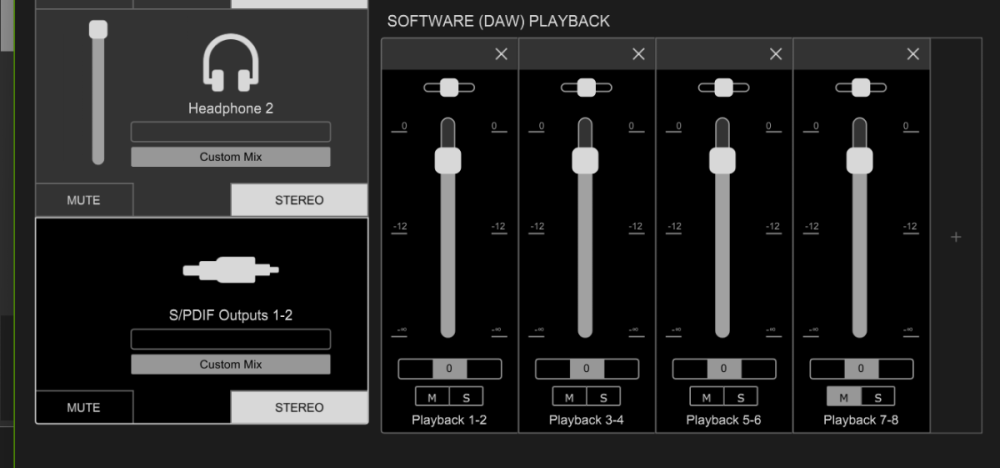

March 13, 20251 yr I have a method I use for RSASIO using loopback/spdif on my audio interface. How to stream RS2014 to Discord, using Loopback (or SPDIF), on Audio Interface using RSMODS PREQUESITES: Audio Interface, I'm using Scarlet 18i8 2nd Gen. note: 2nd Gen Scarlet doesn't support Loopback, so you have to use SPDIF cable that goes from the output into the input. RS2014 w/ RSMOD installed to use ASIO (find a tutorial) OBS STEP 1: Setting up the Mix Open your audio interface software, and configure the Loopback (or SPDIF) to a 'custom mix'. Select only the outputs that contain audio you want to stream. For example: My 1+2 Output is Rocksmith + my guitar, 3+4 is my vocals. So I route those two outputs into Loopback. Generally, you want to mute all inputs in the mix, so you aren't getting raw guitar or microphone audio. Microphone and vocal processing is optional, you can continue to use normal discord voice chat. I mute myself, so users have to watch my stream to hear me sing. It's the courteous thing to do! I use Guitar Rig 6 standalone VST application to process my vocals. STEP 2: Settings up OBS OBS is used to create a virtual webcam, referred to as a 'Capture Device' for Discord Streaming. Create a Scene in OBS, you can do as much as you want to this scene, but you don't need ANY audio devices. If you add the Loopback output into OBS, it might conflict with Discord's audio capture. So just leave it out for now. The minimum requirement for this scene is just game capture. I also like to throw on a mask, color key and my webcam on there. Once your scene is set the way you want it, select "Start Virtual Webcam" STEP 3: Streaming to Discord Enter a voice channel, start a stream, select "Capture Devices", then Select "OBS Virtual Camera" and on the next screen, select Audio Device "Loopback". To test without asking others to watch your stream, you can enable clips, enter a VC where clips are allowed, and capture a clip of your playing FAQS: I have X audio interface, can you help me? - probably not, I don't know much about anything outside of focusrite I have a focusrite, but I don't see the audio devices as options in discord - in the lower right, there's a grey 'F' icon, right click that, select "expose / hide windows channels" and enable what you want to use, if you don't know, do em all. May have to restart PC or programs to get them to see the new audio device Discord has no sound - try disabling all audio devices in OBS. Sometimes OBS will try to capture audio and conflict with discord. Once you've disable OBS audio capture, try restarting all associated programs.
March 14, 20251 yr Author Moderator 10 hours ago, Dalton said: I have a method I use for RSASIO using loopback/spdif on my audio interface. How to stream RS2014 to Discord, using Loopback (or SPDIF), on Audio Interface using RSMODS Loopback (idk about spdif) specifically isn't a good idea for Discord streamers because loopback will send all audio to them, which includes their own audio unless you send it to something other than that interface. Which is why I didn't recommend it in my guide.
March 14, 20251 yr 15 hours ago, Phantatsy said: Loopback (idk about spdif) specifically isn't a good idea for Discord streamers because loopback will send all audio to them, which includes their own audio unless you send it to something other than that interface. Which is why I didn't recommend it in my guide. I didn't even think about that because I have had it set up for so long. My output 7/8 is discord, and 1/2 is game, 3/4 is vocal VST. I just mute the 7/8 output for loopback/spdif
March 15, 20251 yr Author Moderator 21 hours ago, Dalton said: I didn't even think about that because I have had it set up for so long. My output 7/8 is discord, and 1/2 is game, 3/4 is vocal VST. I just mute the 7/8 output for loopback/spdif That's pretty cool, I'm not sure most are like that, however. Mine doesn't let me do anything of the sort. So if someone has the loopback feature and it lets them do custom mixes like this, that's a good way to do it IMO.
June 29, 20251 yr (discord) not worked for me. i have no sound in rocksmith 2014 but rocksmith hears my guitar, i can tune. Viewers and me only hears guitar sound in reaper.I did what you say only difference is in OBS. i dont have ReaRoute ASIO 4 and 5, only ReaRoute. And im using Scarlett Solo 4th Gen.Can i get help please
July 1, 20251 yr Author Moderator On 6/29/2025 at 9:11 AM, harakirii said: (discord) not worked for me. i have no sound in rocksmith 2014 but rocksmith hears my guitar, i can tune. Viewers and me only hears guitar sound in reaper.I did what you say only difference is in OBS. i dont have ReaRoute ASIO 4 and 5, only ReaRoute. And im using Scarlett Solo 4th Gen.Can i get help please Looking at this image, you have rearoute 5 and 6 selected.
August 23, 20251 yr On 7/16/2024 at 6:03 PM, Phantatsy said: Load up of the game or something else? Hey I am also getting crackling audio whenever I play this after reading through the guide. This could be due to my audio interface (Universal Audio Volt 1), but I have no clue sorry.
August 23, 20251 yr Author Moderator 55 minutes ago, Shrud said: Hey I am also getting crackling audio whenever I play this after reading through the guide. This could be due to my audio interface (Universal Audio Volt 1), but I have no clue sorry. Which method are you using? First thing that comes to mind is the versin of OBS.
September 4, 20251 yr Is there a way to use sound from my daw in rocksmith? I tried VB cabel but the game doesn't see it.
September 5, 20251 yr Author Moderator On 9/4/2025 at 2:06 AM, BlackCow88 said: Is there a way to use sound from my daw in rocksmith? I tried VB cabel but the game doesn't see it. The only DAW I know you can do this with is REAPER.
September 6, 20251 yr 7 hours ago, Phantatsy said: The only DAW I know you can do this with is REAPER. I found what you're talking about, but I have an issue when I assign my audio interface to output in RSAsio the audio in game just crackling and hissing
September 6, 20251 yr 1 hour ago, BlackCow88 said: I found what you're talking about, but I have an issue when I assign my audio interface to output in RSAsio the audio in game just crackling and hissing Set the latency buffer in rs.ini to 16, it worked!!!
February 25Feb 25 Hey, i tried the voicemeter version, it's working on OBS recording but i have horrible glitched noises on low buffer size and high buffer size still doesn't fix it. Even when i have OBS turned off. Any way to fix it? Using a focusrite 2i2 3rd gen
